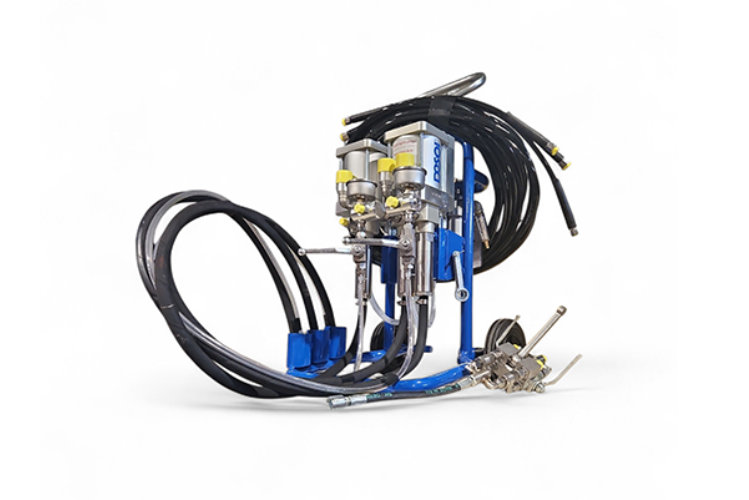

Desoi – Acrylate Gel Pump

This reciprocating pump is specifically designed for acrylate gel injection and delivers material at a precise 1:1 mixing ratio. Equipped with a forced-control system, it ensures consistent performance and eliminates user mixing errors. Its large, high-precision operating valves provide high flow rates and excellent mixing accuracy. With large material passages, stainless steel wetted components, and a design focused on easy maintenance and low wear, this pump is a durable and efficient solution for demanding injection applications.

Key features:

• Large material passages
• Easy maintenance and repair
• Fixed 1:1 mixing ratio to prevent user error
• High flow rate and high mixing accuracy
• Forced-control reciprocating pump design
• Low-wear construction
• All material-contact parts made of stainless steel

Technical data:

• Working pressure: infinitely variable, 10–100 bar
• Delivery rate: max. 8 L/min
• Air consumption: 1 m³/min
• Air pressure: max. 8 bar
• Transmission ratio: 1:13
• Mixing ratio: 1:1
• Weight: 29.3 kg
• Dimensions (L x W x H): 78 x 39 x 80 cm

Air consumption / delivery rate at 100 bar back pressure (injection pressure):

• 83 L/min air consumption = 0.5 L/min delivery rate
• 166 L/min air consumption = 1 L/min delivery rate
• 342 L/min air consumption = 2 L/min delivery rate
• 433 L/min air consumption = 3 L/min delivery rate

Rinsing pump:

• Working pressure: infinitely variable, 7–220 bar
• Delivery rate: 5 L/min
• Transmission ratio: 1:28
